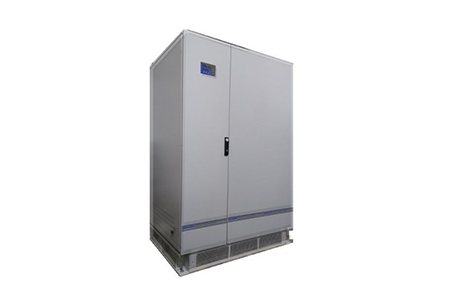

3PH HIGH CAPACITY INVERTER

Offline application areas

➤ Process Control in industries.

➤ Lighting application

➤ Safety System in Power Plants

➤ Medical Equipments

➤ Elevator backup and rescue operations

➤ Banks and Financial Institutes

➤ Motor/water pump running.

➤ Applications Emergency Backup

Product features:

➤ Advanced Technology: DSP based control for power and monitoring

➤ IGBT (insulated gate bipolar transistor) inverter technology

➤ Pure sine wave output

➤ Bidirectional conversion design

➤ Fast changeover

➤ Wide Input Range, Robust Design for Harsh

➤ Environment

➤ With Isolation Transformer at Output

➤ Engineered Design, Easy for Maintenance and Minimize MTTR

➤ CNC Fabricated sheet enclosure for better aesthetics and consistency

➤ Perfect protection, Input/output over/low voltage protection, Input surge protection, Phase sequence protection, battery over charge/discharge protection, short circuit protection, over- temperature protection displayed on LCD display with alarm function

➤ Excellent load feature, It is completely capable to load from 0-100%

➤ WSpecifications can be customized to suit specific requirements

Enquire Now
PARAMETER TECHNICAL SPECIFICATION
Model ARS 335
Rating 6 KVA 8KVA 10KVA 15KVA 20KVA 30KVA 50KVA
AC INPUT 415V 15% -15%, Three Phase Input
Frequency 50Hz ± 6%
DC VOLTAGE: 72V 96V 180V 180V 240V 240/360V 360V
Charger Type CVCC (Constant Current Constant Voltage type)
INVERTER:
Technology DSP based, IGBT Switching
Output Voltage 400/415V AC Three Phase
Frequency 50Hz ± 0.1Hz
Waveform PWM Sine wave
Harmonic Distortion Less than 3% on Linear Load
Inverter Efficiency Upto 85% Upto 90% Upto 92%
Power Factor 0.8
Overload 110 % for 5 min, 150% for 30 sec
Crest Factor 3:1
Audible Noise Less than 50 dB at 1 Meter
DISPLAY
Digital LCD Display for R,Y,B Output Voltages, Output currents & Frequency, DC Voltage, Battery and Load Percentage and All Faults
GENERAL
Dimensions (L x W x H) 675 x 300 x 575 mm 900 x 450 x 1000mm
Operating temperature 0°C to 40°C
Humidity Max 95%, Non-condensing
PROTECTIONS Output Overload & Short circuit, Output Under & Over voltage, DC Under & Over voltage, Mains Under & Over voltage, Mains Single Phasing
INDICATIONS & ALARMS
a) Mains on LED Indication
b) Inverter LED Indication
c) Batt Low LED Indication & Alarm
d) Fault LED Indication & Alarm
e) Overload LED Indication & Alarm
