Lithium-Ion ESS

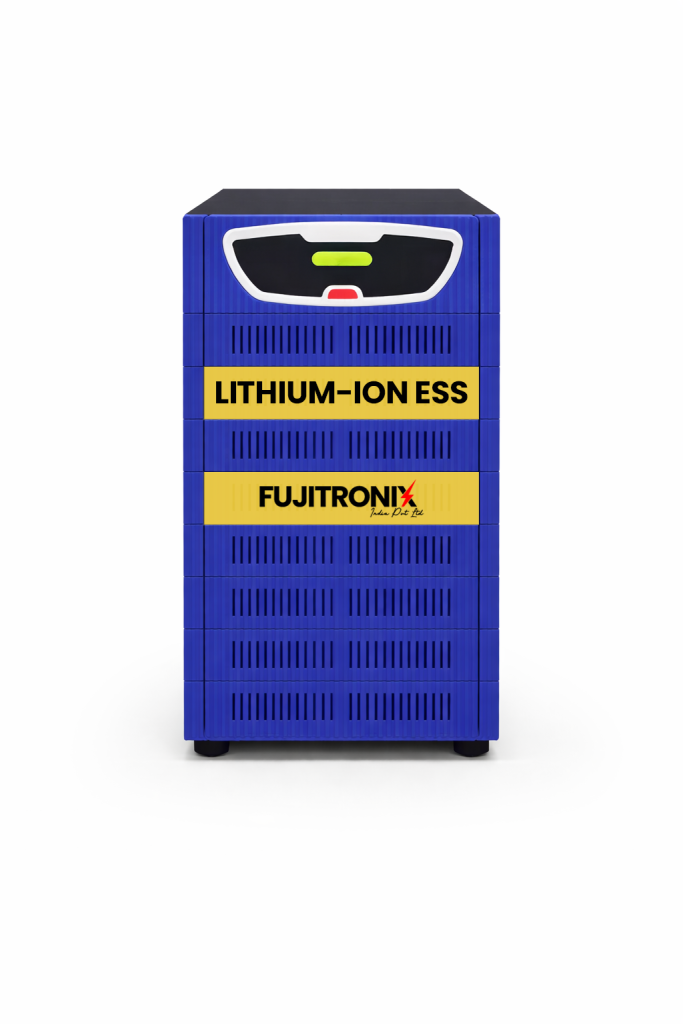

Product visuals may differ from the actual item.*
5 kWh LITHIUM ESS
Application areas
➤ Homes & Small Apartments
➤ Office Workstations
➤ Retail Shops & Small Commercial Outlets
➤ Clinics, Labs & Small Healthcare Facilities
➤ Telecom, Wi-Fi & Networking Backup
➤ Security, CCTV & Surveillance Power Systems
➤ Solar Hybrid & Off-Grid Installations
➤ Modular UPS & Backup Power Solutions
Product features:
➤ High-performance LiFePO4 battery offering long life & stable output
➤ 5 kWh energy storage suitable for 3–6 hours backup (load-dependent)
➤ Integrated BMS for advanced safety & battery protection
➤ Modular design — easy to expand in parallel
➤ High charging efficiency with fast recharge capability
➤ Pure Sine Wave compatible for sensitive loads
➤ Solar-ready — supports MPPT charging
➤ Smart real-time monitoring with LED/LCD indicators
➤ Maintenance-free: no fumes, no top-up, safe chemistry
➤ Long cycle life (3000+ cycles) ensuring long-term reliability
➤ High surge current handling for inductive loads
➤ Compact, lightweight and wall/floor mount options available
PARAMETER — TECHNICAL SPECIFICATION
| Model | 5 kWh Lithium ESS |
| Energy Rating | 5120 Wh (5.12 kWh) |
BATTERY SPECIFICATIONS (LiFePO4)
| Rated Voltage | 51.2V |
| Battery Capacity | 100Ah |
| Energy (Wh) | 5120Wh |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | >3000 cycles @ 80% DoD |
| Charging Voltage | 56.8V |
| Discharge Cut-off | 42V – 44V |
| Max Charging Current | 30–40A |
| Communication | CAN, RS485, Optional Wi-Fi |
| BMS Protections | Over/Under Voltage, Over-discharge, Overcharge, Short Circuit, Overcurrent, Over Temperature, Cell Balancing |
ESS SYSTEM FEATURES
| Operational Mode | Hybrid, Backup, Solar ESS |
| Output Compatibility | Works with external inverters (3kW–5kW) |
| Surge Capability | High discharge support |
| Thermal Management | Intelligent air cooling |
| Mounting Options | Wall mount, Floor mount |
| System Efficiency | >92% |
DISPLAY & MONITORING
GENERAL
PROTECTIONS
INDICATIONS & ALARMS
OPTIONAL FEATURES
Product visuals may differ from the actual item.*
10 kWh LITHIUM ESS
Application areas
➤ Large Homes & Duplexes
➤ Offices & Workspaces (10–20 users)
➤ Clinics, Diagnostic Labs & Healthcare Facilities
➤ Retail Stores, Salons & Commercial Outlets
➤ Security Surveillance Hubs & Data Recording Systems
➤ Solar Hybrid Off-Grid & On-Grid Storage
➤ Telecom, Server & Networking Backup
➤ Industrial Control Loads & Automation Panels constant frequency and constant voltage
Product features:
➤ High-capacity LiFePO4 ESS designed for long backup durations
➤ 10 kWh energy storage suitable for 5–12 hours backup (load dependent)
➤ Advanced BMS ensures safety, stability & extended cycle life
➤ Modular and scalable — multiple ESS units can be connected in parallel
➤ Fast charging with high round-trip efficiency
➤ High surge discharge support for inductive loads
➤ Pure Sine Wave compatible output with inverter systems
➤ Safe LiFePO4 chemistry: no fumes, no leakage, no explosion risk
➤ Solar-ready — fully compatible with MPPT controllers
➤ Long life (>3000 cycles) making it ideal for heavy usage
➤ Intelligent thermal management ensures optimum performance
➤ Wall or floor mount options available
PARAMETER — TECHNICAL SPECIFICATION
| Model | 10 kWh Lithium ESS |
| Energy Rating | 10,240 Wh (10.24 kWh) |
BATTERY SPECIFICATIONS (LiFePO4)
| Rated Voltage | 51.2V |
| Battery Capacity | 200Ah |
| Total Energy | 10.24 kWh |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | >3000 cycles @ 80% DoD |
| Charging Voltage | 56.8V |
| Discharge Cut-off Voltage | 42–44V |
| Max Charging Current | 50A – 80A |
| Communication Protocols | CAN, RS485, Wi-Fi (optional) |
| BMS Safety Protections | Overcharge Protection, Over-discharge Protection, Overcurrent, Short Circuit, Overtemperature (High/Low), Cell Balancing, Reverse Polarity Protection, Pack Voltage Monitoring |
ESS SYSTEM FEATURES
| Operational Mode | Hybrid, Backup, Solar ESS |
| Compatible Inverter Range | 5kW – 10kW |
| Round Trip Efficiency | >92% |
| Surge Discharge Current | High motor starting support |
| Thermal Cooling | Intelligent air-cooled |
| Installation | Wall mount, Floor mount |
| System Topology | Modular, Expandable in parallel |
DISPLAY & MONITORING
GENERAL
PROTECTIONS
INDICATIONS & ALARMS
OPTIONAL FEATURES
Product visuals may differ from the actual item.*
15 kWh LITHIUM ESS
Application areas
➤ Large Homes, Villas & Duplexes
➤ Offices, Studios & Workspaces (15–30 users)
➤ Clinics, Diagnostic Labs, Healthcare Centres
➤ Retail Stores, Restaurants & Commercial Spaces
➤ Surveillance Command Centres & IT Rooms
➤ Solar Off-Grid/Hybrid Installations
➤ Industrial Automation & Control Equipment
➤ Long Backup Applications (8–18 hours – load-dependent)
Product features:
➤ High-capacity 15 kWh LiFePO4 battery for extended backup
➤ Ideal for heavy home and commercial power requirements
➤ Advanced BMS ensures 100% operational safety & stability
➤ Modular, expandable design — connect multiple ESS units in parallel
➤ Fast charging system with high efficiency
➤ Long cycle life (3000+ cycles at 80% DoD)
➤ High surge discharge capability for inductive loads
➤ Safe, stable LiFePO4 chemistry: No fumes, no fire risk
➤ Solar MPPT compatible — supports off-grid & hybrid inverters
➤ Pure Sine Wave inverter-compatible for sensitive loads
➤ LCD/LED display for complete monitoring
➤ Intelligent cooling ensures optimal performance
➤ Maintenance-free system
PARAMETER — TECHNICAL SPECIFICATION
| Model | 15 kWh Lithium ESS |
| Energy Rating | 15,360 Wh (15.36 kWh) |
BATTERY SPECIFICATIONS (LiFePO4)
| Rated Voltage | 51.2V |
| Battery Capacity | 300Ah |
| Total Energy | 15.36 kWh |
| Battery Chemistry | LiFePO4 |
| Cycle Life | >3000 cycles @ 80% DoD |
| Charging Voltage | 56.8V |
| Discharge Cut-off Voltage | 42–44V |
| Max Charging Current | 60A – 100A |
| Communication Interfaces | CAN, RS485, Optional Wi-Fi |
| BMS Protections | Overcharge, Over-discharge, Overcurrent, Short Circuit, Over Temperature, Cell Balancing, Reverse Polarity, Battery Health Monitoring |
ESS SYSTEM FEATURES
| Operational Modes | Backup, Hybrid, Solar ESS |
| Compatible Inverter Range | 7.5kW – 15kW |
| Round Trip Efficiency | >92% |
| Surge Handling | High discharge current support |
| Thermal Cooling | Intelligent Fan-Based |
| Installation Type | Floor-Standing, Wall Mount (variant-dependent) |
| System Design | Modular, scalable |
DISPLAY & MONITORING
| Display Shows | SOC (State of Charge), SOH (State of Health), Input & Output Current, Battery Voltage, Temperature, Alarms & Warnings, Communication Status |
GENERAL
| Operating Temperature | 0°C – 55°C |
| Humidity | <95% Non-Condensing |
| Enclosure Material | Industrial MS Cabinet / ABS |
| IP Rating | IP20 (Indoor) |
| Cooling System | Intelligent fan cooling |
| Form Factor | Compact, high-density ESS enclosure |
PROTECTIONS
| Protections | Output Overload, Output Short Circuit, Battery Deep Discharge, Battery Overcharge, Reverse Polarity, Thermal Overload, Overcurrent Trip, Output Over Voltage |
INDICATIONS & ALARMS
| Indicators & Alarms | Charging Active, Discharging Active, Battery Low Warning, Over Temperature Alert, Overload Alarm, System Fault, Communication Failure Alarm |
OPTIONAL FEATURES
| Optional Features | MPPT Solar Charging Compatibility, IoT/Wi-Fi Monitoring, Expandable Parallel ESS Setup, Fire-Resistant Cabinet, Smart BMS Logging, Rack or Wall-Mount Options |
Product visuals may differ from the actual item.*
20 kWh LITHIUM ESS
Application areas
➤ Large Homes, Villas & Farmhouses
➤ Mid-Size & Large Offices (20–40 users)
➤ Clinics, Diagnostic Labs, Nursing Homes
➤ Restaurants, Hotels & Retail Showrooms
➤ Surveillance Control Rooms & Data Backup Rooms
➤ Industrial Automation Equipment
➤ Solar Off-Grid / Hybrid ESS Installations
➤ Heavy Load Backup (8–24 hours depending on usage)
Product features:
➤ Massive 20 kWh LiFePO4 storage ideal for commercial & heavy home use
➤ Long cycle life (3000+ cycles @ 80% DoD) ensuring multi-year stability
➤ High discharge capability for motors, pumps & inductive loads
➤ Perfect for solar hybrid systems — MPPT compatible
➤ Integrated BMS ensures complete electrical & thermal protection
➤ Modular & expandable — parallel multiple units for higher kWh
➤ Fast charging with high round-trip efficiency
➤ Pure Sine Wave inverter compatibility for sensitive equipment
➤ Intelligent thermal management for stable long-duration operation
➤ Ultra-safe LiFePO4 chemistry — zero risk of fumes or thermal runaways
➤ Real-time monitoring with LCD/LED display
➤ Maintenance-free — no electrolyte, no topping up
➤ Ideal for long-duration backup installations
PARAMETER — TECHNICAL SPECIFICATION
| Model | 20 kWh Lithium ESS |
| Energy Rating | 20,480 Wh (20.48 kWh) |
BATTERY SPECIFICATIONS (LiFePO4)
| Rated Voltage | 51.2V |
| Battery Capacity | 400Ah |
| Total Energy | 20.48 kWh |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | >3000 cycles @ 80% DoD |
| Charging Voltage | 56.8V |
| Discharge Cut-off Voltage | 42–44V |
| Max Charging Current | 80A – 120A |
| Communication | CAN, RS485, Optional Wi-Fi |
| BMS Protection Features | Overcharge & Over Voltage, Over-discharge, Short Circuit Protection, Overcurrent Protection, High/Low Temperature Shutdown, Cell Balancing, Reverse Polarity, Pack Monitoring & Fault Isolation |
ESS SYSTEM FEATURES
| Operational Modes | Backup, Hybrid, Solar ESS |
| Compatible Inverter Range | 10kW – 20kW |
| Round Trip Efficiency | >92% |
| Discharge Surge Current | High motor starting support |
| System Topology | Modular, expandable multi-pack support |
| Thermal Cooling | Intelligent Fan-Based Temperature Control |
| Installation Types | Floor Standing, Industrial Rack |
DISPLAY & MONITORING
| LCD/LED Provides | SOC (State of Charge), SOH (State of Health), Charging/Discharging Current, Battery Voltage, Temperature Status, Fault Alerts, Communication Status (CAN/RS485) |
GENERAL
| Operating Temperature | 0°C – 55°C |
| Humidity | <95% Non-condensing |
| Enclosure | Industrial MS Cabinet, ABS FR Grade |
| IP Rating | IP20 Indoor |
| Cooling System | Intelligent Fan Cooling |
| Placement | Floor-Mount Heavy-Duty Cabinet |
PROTECTIONS
| Protections | Input/Output Over Voltage, Output Overload, Output Short Circuit, Battery Deep Discharge, Battery Overcharge, Reverse Polarity, Thermal Shutdown, Overcurrent Trip |
INDICATIONS & ALARMS
| Indications & Alarms | Charging ON, Discharging ON, Battery Low, Over Temperature Alarm, Overload Alarm, System Fault Alert, CAN/RS485 Communication Fault Alarm |
OPTIONAL FEATURES
| Optional Features | MPPT Solar Charging Integration, IoT-Based Wi-Fi / Bluetooth Monitoring, Parallel Expansion (40–100 kWh), Fire-Resistant Industrial Cabinet, Advanced BMS with Data Logging, Rack-Mount ESS Option |
Product visuals may differ from the actual item.*
30 kWh LITHIUM ESS
Application areas
➤ Large Villas, Bungalows & Luxury Residences
➤ Corporate Offices, Studios & Commercial Buildings
➤ Hospitals, Clinics, Diagnostic Centres
➤ Restaurants, Hotels & Retail Chains
➤ Server Rooms, IT Data Centres & Control Rooms
➤ Industrial Automation Lines & Machinery Backup
➤ Solar Off-Grid / Hybrid Heavy-Duty Systems
➤ Ideal for 12–36 hours backup (load dependent)
Product features:
➤ Massive 30 kWh LiFePO4 lithium storage for long-duration & heavy-power usage
➤ Designed for commercial, industrial & high-end residential applications
➤ Intelligent multi-layer BMS ensures maximum safety & reliability
➤ High surge discharge capability — supports motors, pumps, lifts, HVAC systems
➤ Modular & scalable — multiple ESS units can run in parallel to reach 100 kWh+
➤ Ultra-fast charging with high round-trip efficiency (>92%)
➤ Ideal for solar hybrid systems — MPPT compatible
➤ Pure Sine Wave inverter compatibility for sensitive electrical loads
➤ Extremely long cycle life — 3000+ cycles @ 80% DoD
➤ Advanced thermal management keeps system stable & safe
➤ Maintenance-free, leak-proof, and non-hazardous LiFePO4 chemistry
➤ Real-time monitoring via advanced LCD/LED display
➤ Heavy-duty enclosure for industrial-grade installation
PARAMETER — TECHNICAL SPECIFICATION
| Model | 30 kWh Lithium ESS |
| Energy Rating | 30,720 Wh (30.72 kWh) |
BATTERY SPECIFICATIONS (LiFePO4)
| Rated Voltage | 51.2V |
| Battery Capacity | 600Ah |
| Total Energy | 30.72 kWh |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | >3000 cycles @ 80% DoD |
| Charging Voltage | 56.8V |
| Discharge Cut-off | 42–44V |
| Max Charging Current | 100A – 150A |
| Communication Protocols | CAN, RS485, Wi-Fi Optional |
| BMS Safety Protections | Over-charge, Over-discharge, Overcurrent, Short Circuit, High/Low Temperature Shutdown, Cell Balancing, Reverse Polarity, Real-time Battery Monitoring |
ESS SYSTEM FEATURES
| Operational Modes | Backup, Hybrid, Solar ESS |
| Compatible Inverter Range | 15kW – 30kW |
| Round Trip Efficiency | >92% |
| Surge Discharge Capability | High motor/pump starting support |
| System Architecture | Modular parallel expansion up to 100 kWh+ |
| Thermal Cooling | Intelligent Fan Cooling System |
| Installation Type | Floor-Mount Industrial Cabinet |
DISPLAY & MONITORING
| LCD/LED Provides | SOC (State of Charge), SOH (State of Health), Battery Voltage, Charging/Discharging Current, Battery Temperature, Fault & Warning Alerts, CAN/RS485 Communication Status |
GENERAL
| Operating Temperature | 0°C – 55°C |
| Humidity | <95% Non-Condensing |
| Enclosure | Industrial Grade MS Cabinet (FR Rated) |
| IP Rating | IP20 Indoor |
| Cooling | High-Capacity Intelligent Fan System |
| Mounting | Heavy-Duty Floor Installation |
PROTECTIONS
| Protections | Output Overload, Short Circuit Protection, Over Temperature, Battery Deep Discharge, Battery Overcharge, Output Over Voltage, Reverse Polarity, Overcurrent Protection |
INDICATIONS & ALARMS
| Indications & Alarms | Charging ON, Discharging ON, Battery Low Alarm, Over Temperature Warning, Overload Alarm, System Fault Alarm, Communication Fault Indicator |
OPTIONAL FEATURES
| Optional Features | Smart MPPT Solar Integration, IoT/Wi-Fi Remote Monitoring App, Parallel Expansion (30 kWh → 60 / 90 / 120 kWh), Fire-Resistant Industrial Strength Cabinet, Smart BMS with Advanced Logging, Rack-Mount ESS Architecture (Optional) |
