Lithium Ion Inverter and Battery

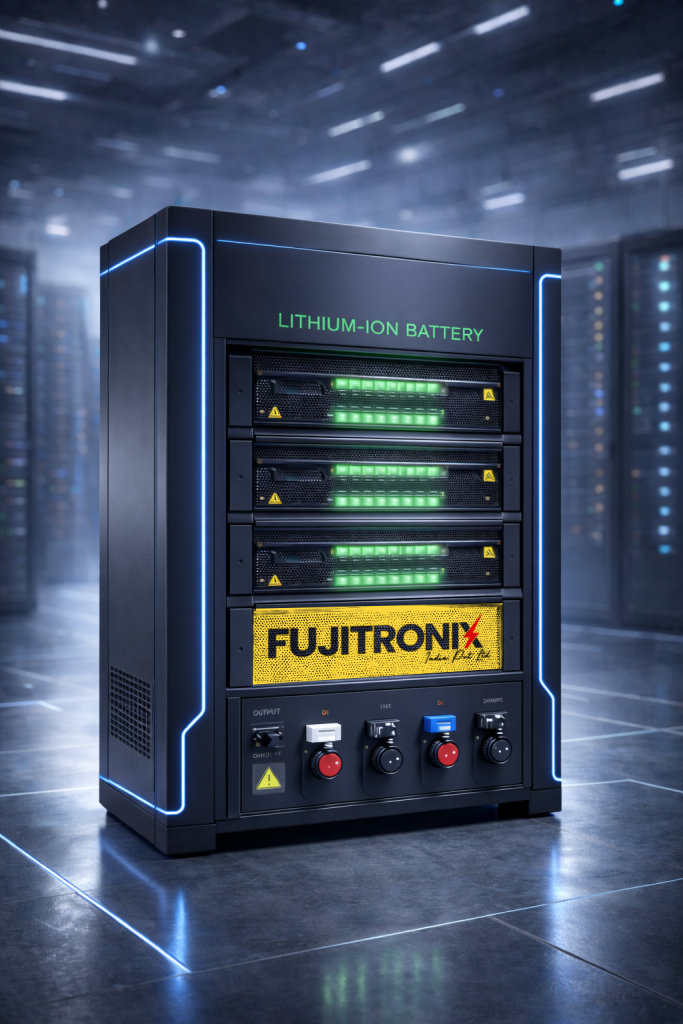

Product visuals may differ from the actual item.*
12V 80Ah LITHIUM COMBO
Application areas
➤ Home Backup Power
➤ Office Workstations
➤ Shops & Retail Stores
➤ CCTV & Security Systems
➤ Home Automation Devices
➤ Medical Equipment (Low Load)
➤ Small Appliances & Electronics
➤ Telecom & Networking Devices
Product features:
➤ Latest LiFePO4 Lithium Technology for long cycle life
➤ Ultra-Lightweight and Compact compared to lead-acid batteries
➤ Fast Charging Capability with high efficiency
➤ Pure Sine Wave Output ensures superior performance
➤ Zero Maintenance, No Acid, No Fumes
➤ Intelligent BMS (Battery Management System) for safe operation
➤ Deep Discharge & Overcharge Protection
➤ Compatible with Solar Charging (optional)
➤ High Backup with Low Self-Discharge
➤ Smart LCD Display for live system monitoring
➤ Silent Operation, No Vibration
➤ Ideal replacement for traditional home inverters
➤ 4–5 times longer life compared to SMF/VRLA batteries
PARAMETER — TECHNICAL SPECIFICATION
| Model | 51.2V 200Ah Lithium Combo |
|---|---|
| System Rating | Supports 5000W – 8000W Loads (Inverter dependent) |
BATTERY SPECIFICATIONS (LiFePO4)
| Battery Voltage | 51.2V Nominal |
|---|---|
| Capacity | 200Ah |
| Total Energy | ~10.24 kWh |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | >3000 Cycles @ 80% DoD |
| Charging Voltage | 56.8V ± 0.2V |
| Discharge Cut-off | 42V – 44V |
| Max Charging Current | 50A – 60A |
| Peak Discharge Current | 100A – 150A (Model dependent) |
| BMS Protections | Overcharge & Over-voltage, Over-discharge, Short Circuit Protection, Overcurrent Protection, High/Low Temperature Cutoff, Cell Balancing, Reverse Polarity, Battery Health Monitoring |
INVERTER
| Technology | DSP-Based Pure Sine Wave |
|---|---|
| Output | 230V AC, Pure Sine Wave, 50Hz ± 0.1Hz, Efficiency > 92% |
| Surge Capability | Up to 2× of rated load |
| Transfer Time | <10 ms |
| AC Input Range | 100V – 290V AC |
| Lithium Mode | Supported |
| THD | <3% |
DISPLAY
| Display Shows | Battery Voltage, Battery Percentage, Input Voltage, Output Voltage, Load Percentage, Charging Current, System Temperature, Fault Codes & Warnings |
|---|
GENERAL
| Operating Temperature | 0°C – 55°C |
|---|---|
| Humidity | <95% Non-Condensing |
| Cooling | Intelligent Thermal-Controlled Fans |
| Enclosure | Industrial MS Sheet / ABS (Variant Based) |
| Mounting | Floor Standing / Wall Mount Options |
| Noise Level | <50 dB |
PROTECTIONS
| Protection Features | Input Over/Under Voltage, Output Overload, Output Short Circuit, Battery Deep Discharge, Battery Overcharge, Reverse Polarity, Thermal Shutdown, Output Over Voltage, Overcurrent Protection |
|---|
INDICATIONS & ALARMS
| Indicators | Mains ON, Inverter ON, Charging ON, Battery Low Alarm, Overload Warning, System Fault Buzzer, LCD Alerts |
|---|
OPTIONAL FEATURES
| Available Options | MPPT Solar Charger Integration, Wireless (Wi-Fi/Bluetooth) App Monitoring, Parallel Battery Expansion, Extended Backup Pack Configuration, Fire-Retardant Cabinet, Smart BMS with Data Logging, Remote Monitoring (IoT Ready) |
|---|
Product visuals may differ from the actual item.*
24V 50Ah LITHIUM COMBO
Application areas
➤ Home Backup Power
➤ Office Workstations
➤ Shops & Retail Stores
➤ CCTV & Security Systems
➤ Home Automation Devices
➤ Medical Equipment (Low Load)
➤ Small Appliances & Electronics
➤ Telecom & Networking Devices
Product features:
➤ Latest LiFePO4 Lithium Technology for long cycle life
➤ Ultra-Lightweight and Compact compared to lead-acid batteries
➤ Fast Charging Capability with high efficiency
➤ Pure Sine Wave Output ensures superior performance
➤ Zero Maintenance, No Acid, No Fumes
➤ Intelligent BMS (Battery Management System) for safe operation
➤ Deep Discharge & Overcharge Protection
➤ Compatible with Solar Charging (optional)
➤ High Backup with Low Self-Discharge
➤ Smart LCD Display for live system monitoring
➤ Silent Operation, No Vibration
➤ Ideal replacement for traditional home inverters
➤ 4–5 times longer life compared to SMF/VRLA batteries
PARAMETER — TECHNICAL SPECIFICATION
| Model | 24V 50Ah Lithium Combo |
|---|---|
| System Rating | Supports 1500W – 2000W Load (Model-dependent) |
BATTERY SPECIFICATIONS (LiFePO4)
| Battery Details | 25.6V Nominal, 50Ah Capacity, ~1280Wh Energy, LiFePO4 Chemistry, >3000 Cycles @ 80% DoD |
|---|---|
| Charging Voltage | 29.2V ± 0.2V |
| Discharge Cut-off Voltage | 21V – 22V |
| Max Charging Current | 30A |
| BMS Features | Overcharge Protection, Over-discharge Protection, Short Circuit Protection, Overcurrent Protection, Thermal Protection, Cell Balancing, Battery Health Monitoring |
INVERTER
| Technology | DSP-Controlled Pure Sine Wave |
|---|---|
| Output | 230V AC, Pure Sine Wave, 50Hz ± 0.1Hz, Efficiency >90% |
| Transfer Time | <10 ms |
| AC Input Voltage Range | 100V – 290V AC |
| Additional Features | Low Voltage Ride Through, Lithium Mode Charging Enabled |
DISPLAY
| LCD/LED Indicators | Battery Percentage, Battery Voltage, Input Voltage, Output Voltage, Load %, Charging Level, Fault Alerts |
|---|
GENERAL
| Operating Temperature | 0°C – 55°C |
|---|---|
| Humidity | <95% Non-condensing |
| Battery Enclosure | ABS / MS Sheet (Model Variant) |
| Cooling | Intelligent Temperature-Controlled Fan |
| Mounting | Compact Floor/Wall Mountable Options |
PROTECTIONS
| Protection Features | Input High/Low Voltage, Output Overload, Output Short Circuit, Battery Overcharge, Battery Deep Discharge, Reverse Polarity, Temperature Overheat Shutdown |
|---|
INDICATIONS & ALARMS
| Indicators | Mains ON, Inverter ON, Charging Active, Battery Low Alarm, Overload Alarm, System Fault (Audio + Visual Alert) |
|---|
OPTIONAL FEATURES
| Options | MPPT Solar Charger Integration, Wi-Fi / Bluetooth App Monitoring, Extended Lithium Battery Pack, Fire-Resistant Outer Enclosure, Smart BMS Data Logging |
|---|
Product visuals may differ from the actual item.*
48V 100Ah LITHIUM COMBO
Application areas
➤ Homes & Large Apartments
➤ Office Backup for Multiple Workstations
➤ Commercial Shops & Retail Stores
➤ Small Clinics & Labs
➤ Surveillance & Security Systems
➤ Telecom & Networking Equipment
➤ Servers, Routers & IT Loads
➤ Solar Hybrid Backup Systems
➤ Industrial Control Panels (Low to Medium Load)
Product features:
➤ High-capacity LiFePO4 battery designed for heavy and long-duration backup
➤ Pure Sine Wave DSP-controlled Inverter for sensitive loads
➤ Ultra-Fast Charging — up to 4x faster than VRLA/SMF batteries
➤ Intelligent BMS ensures battery health, safety & long cycle life
➤ High discharge efficiency — consistent backup at higher loads
➤ Supports high surge load appliances
➤ Wide Input Voltage Range for poor grid conditions
➤ Lightweight & compact design compared to lead-acid systems
➤ Maintenance-free — No fumes, no acid, no water top-up
➤ Solar compatible (optional MPPT integration)
➤ Long Cycle Life: 3000+ cycles at 80% DoD
➤ Low heat generation and low self-discharge rate
➤ Ideal for long backup durations and heavy load operation
PARAMETER — TECHNICAL SPECIFICATION
| Model | 48V 100Ah Lithium Combo |
|---|---|
| System Rating | Supports 3000W – 5000W Load (Model Dependent) |
BATTERY SPECIFICATIONS (LiFePO4)
| Battery Details | 51.2V Nominal, 100Ah Capacity, ~5120Wh Energy, LiFePO4 Chemistry, >3000 Cycles @ 80% DoD |
|---|---|
| Charging Voltage | 56.8V ± 0.2V |
| Discharge Cut-off Voltage | 42V – 44V |
| Max Charging Current | 40A |
| BMS Functions | Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Short Circuit Protection, Temperature Protection, Cell Balancing, Battery Health Monitoring |
INVERTER
| Technology | DSP-Based Pure Sine Wave |
|---|---|
| Output | 230V AC, Pure Sine Wave, 50Hz ± 0.1Hz, Efficiency >92% |
| Transfer Time | <10 ms |
| AC Input Range | 100V – 290V AC |
| Additional Features | Lithium Mode Charging Enabled, Max Surge Load: 2x Rated Load |
DISPLAY
| LCD/LED Indicators | Battery %, Battery Voltage, Input Voltage, Output Voltage, Output Load %, Charging Mode, System Temperature, Fault Messages |
|---|
GENERAL
| Operating Temperature | 0°C – 55°C |
|---|---|
| Humidity | <95% Non-condensing |
| Cooling | Intelligent Fan with Thermal Sensors |
| Enclosure | MS Sheet / ABS (Model Variant) |
| Mounting | Floor Standing / Wall Mount Options |
PROTECTIONS
| Protection Features | Input Over/Under Voltage, Output Overload, Short Circuit Protection, Battery Overcharge, Battery Deep Discharge, Temperature Overheat Shutdown, Reverse Polarity Protection, Output Over Voltage |
|---|
INDICATIONS & ALARMS
| Indicators | Mains ON, Inverter ON, Charging ON, Battery Low Alarm, Overload Alarm, System Fault Buzzer, LCD Fault Codes |
|---|
OPTIONAL FEATURES
| Options | MPPT Solar Charger, Wi-Fi/Bluetooth App Monitoring, Parallel Expansion for Higher Backup, Fire-Retardant Outer Body, Smart BMS Data Logging, Extended Capacity Lithium Bank |
|---|
Product visuals may differ from the actual item.*
51.2V 100Ah LITHIUM COMBO
Application areas
➤ Homes & Large Apartments
➤ Medium-Sized Offices & Workspaces
➤ Retail Showrooms & Commercial Establishments
➤ Clinics, Labs & Diagnostic Centres
➤ CCTV & Security Surveillance Systems
➤ IT Loads – Routers, Servers, Networking Devices
➤ Solar Hybrid Backup Power
➤ Industrial Control & Automation Loads
➤ Long Backup Applications
Product features:
➤ Advanced LiFePO4 lithium technology with superior safety
➤ High energy density: compact and lightweight design
➤ Compatible with high-load inverters up to 5kW+
➤ Intelligent Battery Management System (BMS)
➤ Fast charging capability – 4× faster than lead-acid
➤ Pure Sine Wave DSP-Based Inverter for sensitive electronics
➤ High backup efficiency with minimal energy loss
➤ 3000+ life cycles for long-term durability
➤ Stable performance even at high temperatures
➤ Maintenance-free: no acid, no fumes, no leakage
➤ Solar-ready system (optional MPPT)
➤ LCD system monitoring for battery & inverter parameters
➤ High surge handling for inductive loads
| PARAMETER — TECHNICAL SPECIFICATION | |
|---|---|
| Model | 51.2V 100Ah Lithium Combo |
| System Rating | Supports 3000W – 5000W Loads (Depending on inverter model) |
| BATTERY SPECIFICATIONS (LiFePO4) | |
| Battery Voltage | 51.2V Nominal |
| Battery Capacity | 100Ah |
| Energy | ~5120Wh (5.12 kWh) |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | > 3000 Cycles @ 80% DoD |
| Charging Voltage | 56.8V ± 0.2V |
| Discharge Cut-off Voltage | 42V – 44V |
| Max Charging Current | 40A |
| BMS Protections | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Thermal Shutdown, Cell Balancing, Battery Health Monitoring |
| INVERTER | |
| Technology | DSP-Based Pure Sine Wave |
| Output Voltage | 230V AC |
| Waveform | Pure Sine Wave |
| Output Frequency | 50Hz ± 0.1Hz |
| Efficiency | > 92% |
| Transfer Time | <10 ms |
| AC Input Range | 100V – 290V AC |
| Lithium Mode | Fully Supported |
| Peak Surge Handling | Up to 2× Load |
| DISPLAY | |
| Display Shows | Battery Voltage, Battery Percentage, Input Voltage, Output Voltage, Load %, Charging Status, Temperature Indicator, System Faults |
| GENERAL | |
| Operating Temperature | 0°C – 55°C |
| Humidity | <95% Non-Condensing |
| Cooling | Intelligent Temperature-Controlled Fan |
| Enclosure | Powder-Coated MS or ABS Body |
| Installation | Wall / Floor Mounted (Based on Variant) |
| PROTECTIONS | |
| Protection Features | Output Overload, Output Short Circuit, Input Under/Over Voltage, Battery Overcharge, Battery Deep Discharge, Reverse Polarity Protection, Thermal Overload, Output Over Voltage |
| INDICATIONS & ALARMS | |
| Status & Alerts | Mains ON, Inverter ON, Charging Active, Battery Low Alarm, Overload Alarm, Fault Buzzer, LCD Warning Codes |
| OPTIONAL FEATURES | |
| Options Available | MPPT Solar Charger Integration, Wi-Fi/Bluetooth App Monitoring, Parallel Connection for Higher Backup, Fire-Retardant Battery Cabinet, Smart BMS Data Logging, Extended Backup Lithium Bank |
Product visuals may differ from the actual item.*
51.2V 200Ah LITHIUM COMBO
Application areas
➤ Large Homes & Premium Apartments
➤ Corporate Offices & Co-working Spaces
➤ Clinics, Diagnostic Labs & Medical Facilities
➤ Retail Stores, Showrooms & POS-heavy setups
➤ Restaurants & Cloud Kitchens
➤ Surveillance Data Centers & Security Hubs
➤ Industrial Automation Loads
➤ Solar Hybrid Installations
➤ Long-Duration Backup Applications (4–12 hours)
Product features:
➤ High-capacity LiFePO4 lithium battery for long backup durations
➤ 10.24 kWh energy storage — ideal for heavy home & office loads
➤ Pure Sine Wave DSP-based inverter ensures superior electrical quality
➤ Intelligent BMS with real-time protections & cell balancing
➤ Rapid charging (up to 4× faster than conventional batteries)
➤ Excellent thermal stability with long lifecycle (3000+ cycles @ 80% DoD)
➤ High surge handling capability for inductive loads
➤ Maintenance-free operation: no acid, no fumes, no top-up
➤ Wider input voltage range for poor grid areas
➤ Solar-ready with MPPT compatibility
➤ Extremely low self-discharge rate
➤ Safe, fire-resistant LiFePO4 chemistry
➤ LCD/LED monitoring for all system parameters
| PARAMETER — TECHNICAL SPECIFICATION | |
|---|---|
| Model | 51.2V 200Ah Lithium Combo |
| System Rating | Supports 5000W – 8000W Loads (Inverter dependent) |
| BATTERY SPECIFICATIONS (LiFePO4) | |
| Battery Voltage | 51.2V Nominal |
| Capacity | 200Ah |
| Total Energy | ~10.24 kWh |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | > 3000 Cycles @ 80% DoD |
| Charging Voltage | 56.8V ± 0.2V |
| Discharging Cut-off Voltage | 42V – 44V |
| Max Continuous Charging Current | 50A – 60A |
| Peak Discharge Current | 100A – 150A (Model dependent) |
| BMS Protections | Overcharge & Over-voltage, Over-discharge, Short Circuit Protection, Overcurrent Protection, High/Low Temperature Cutoff, Cell Balancing, Reverse Polarity, Battery Health Monitoring |
| INVERTER | |
| Technology | DSP-Based Pure Sine Wave |
| Output Voltage | 230V AC |
| Waveform | Pure Sine Wave |
| Output Frequency | 50Hz ± 0.1Hz |
| Efficiency | > 92% |
| Surge Capability | Up to 2× of rated load |
| Transfer Time | <10 ms |
| AC Input Range | 100V – 290V AC |
| Lithium Mode | Supported |
| THD | <3% |
| DISPLAY | |
| LCD/LED Shows | Battery Voltage, Battery Percentage, Input Voltage, Output Voltage, Load Percentage, Charging Current, System Temperature, Fault Codes & Warnings |
| GENERAL | |
| Operating Temperature | 0°C – 55°C |
| Humidity | <95% Non-Condensing |
| Cooling | Intelligent Thermal-Controlled Fans |
| Enclosure | Industrial MS Sheet / ABS (Variant Based) |
| Mounting | Floor Standing / Wall Mount Options |
| Noise Level | <50 dB |
| PROTECTIONS | |
| Protection Features | Input Over/Under Voltage, Output Overload, Output Short Circuit, Battery Deep Discharge, Battery Overcharge, Reverse Polarity, Thermal Shutdown, Output Over Voltage, Overcurrent Protection |
| INDICATIONS & ALARMS | |
| Status & Alerts | Mains ON, Inverter ON, Charging ON, Battery Low Alarm, Overload Warning, System Fault Buzzer, LCD Alerts |
| OPTIONAL FEATURES | |
| Options Available | MPPT Solar Charger Integration, Wireless (Wi-Fi/Bluetooth) Monitoring, Parallel Battery Expansion, Extended Backup Pack Configuration, Fire-Retardant Cabinet, Smart BMS with Data Logging, Remote Monitoring (IoT Ready) |
