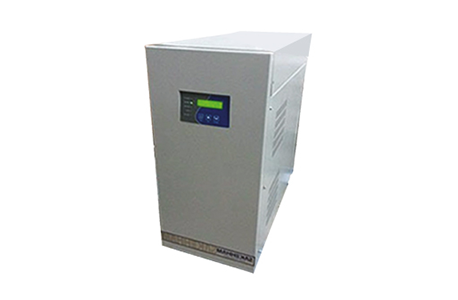

➤ Computer and Data Centers.
➤ Process Control in industries like PLC's
➤ Broadcasting / SAT systems
➤ Internet Service Provider
➤ Security and emergency systems
➤ Medical equipments and laboratories
➤ Banks and ATM centers Applications requiring constant frequency and constant voltage
➤ Advanced Technology: DSP based control for power and monitoring
➤ IGBT (insulated gate bipolar transistor) inverter technology
➤ Pure sine wave output
➤ True on-line dual conversion design for UPS
➤ SWide Input Range, Robust Design for Harsh Environment
➤ With Isolation Transformer at Output
➤ Engineered Design, Easy for Maintenance and Minimize MTTR Compact size
➤ ACNC Fabricated sheet enclosure for better aesthetics and consistency
➤ IIntelligent communication optional SNMP and dry contact.
➤ Perfect protection, Input/output over/low voltage protection displayed on LCD display with alarm function.
➤ Excellent load feature, It is completely capable to load from 0-100%
➤ Specification can be customized to suit specific requirements
| PARAMETER | TECHNICAL SPECIFICATION |
|---|---|
| Model | ERD - FTX |
| Rating | 15KVA to 250KVA |
| AC INPUT | 415V+15%-15%, Three Phase Input |
| Frequency | 50Hz ± 6% |
| DC VOLTAGE: | 240/360 VDC |
| Charger Type | CVCC (Constant Current Constant Voltage type) |
| INVERTER: | |
| Technology | DSP Based, IGBT Switching |
| Output Voltage | 400V AC Three Phase |
| Voltage Regulation | ±1% |
| Frequency | 50Hz ± 0.1Hz |
| Waveform | PWM Sine Wave |
| Harmonic Distortion | Less Than 3% on Linear Load |
| Inverter Efficiency | Upto 93% |
| Power Factor | 0.8 |
| Overload | 110 % for 5 min, 150% for 30 sec |
| Crest Factor | 3:1 |
| Phase Displacement | 120° ± 1° |
| Audible Noise | Less than 50 dB at 1 Meter |
| DISPLAY | |
| Digital LCD Display for | R,Y,B Output Voltages, Output currents & Frequency, DC Voltage, Battery and Load Percentage and All Faults |
| GENERAL | |
| Operating temperature | 0°C to 40°C |
| Humidity | Max 95%, Non-condensing |
| Dimensions (L x W x H) | 900 x 450 x 950mm (15 KVA to 30 kVA) |
| PROTECTIONS | Output Overload & Short circuit, Output Under & Over voltage, DC Under & Over voltage, Mains Under & Over voltage, Mains Single Phasing |
| INDICATIONS & ALARMS | |
| a) Mains on | LED Indication |
| b) Inverter | LED Indication |
| c) Batt Low | LED Indication & Alarm |
| d) Fault | LED Indication & Alarm |
| e) Overload | LED Indication & Alarm |
| OPTIONAL (Features) | |
| Communication | RS232/SNMP |
| Bypass | Static Switch |
➤ Process Control in industries.
➤ Lighting application
➤ Safety System in Power Plants
➤ Medical Equipments
➤ Elevator backup and rescue operations
➤ Banks and Financial Institutes
➤ Motor/water pump running.
➤ Applications Emergency Backup
➤ Advanced Technology: DSP based control for power and monitoring
➤ IGBT (insulated gate bipolar transistor) inverter technology
➤ Pure sine wave output
➤ Bidirectional conversion design
➤ Fast changeover
➤ Wide Input Range, Robust Design for Harsh
➤ Environment
➤ With Isolation Transformer at Output
➤ Engineered Design, Easy for Maintenance and Minimize MTTR
➤ CNC Fabricated sheet enclosure for better aesthetics and consistency
➤ Perfect protection, Input/output over/low voltage protection, Input surge protection, Phase sequence protection, battery over charge/discharge protection, short circuit protection, over- temperature protection displayed on LCD display with alarm function
➤ Excellent load feature, It is completely capable to load from 0-100%
➤ WSpecifications can be customized to suit specific requirements
| PARAMETER | TECHNICAL SPECIFICATION |
|---|---|
| Model | ERD - FTX |
| Rating | 15KVA to 250KVA |
| AC INPUT | 415V+15%-15%, Three Phase Input |
| Frequency | 50Hz ± 6% |
| DC VOLTAGE: | 240/360 VDC |
| Charger Type | CVCC (Constant Current Constant Voltage type) |
| INVERTER: | |
| Technology | DSP Based, IGBT Switching |
| Output Voltage | 400V AC Three Phase |
| Voltage Regulation | ±1% |
| Frequency | 50Hz ± 0.1Hz |
| Waveform | PWM Sine Wave |
| Harmonic Distortion | Less Than 3% on Linear Load |
| Inverter Efficiency | Upto 93% |
| Power Factor | 0.8 |
| Overload | 110 % for 5 min, 150% for 30 sec |
| Crest Factor | 3:1 |
| Phase Displacement | 120° ± 1° |
| Audible Noise | Less than 50 dB at 1 Meter |
| DISPLAY | |
| Digital LCD Display for | R,Y,B Output Voltages, Output currents & Frequency, DC Voltage, Battery and Load Percentage and All Faults |
| GENERAL | |
| Operating temperature | 0°C to 40°C |
| Humidity | Max 95%, Non-condensing |
| Dimensions (L x W x H) | 900 x 450 x 950mm (15 KVA to 30 kVA) |
| PROTECTIONS | Output Overload & Short circuit, Output Under & Over voltage, DC Under & Over voltage, Mains Under & Over voltage, Mains Single Phasing |
| INDICATIONS & ALARMS | |
| a) Mains on | LED Indication |
| b) Inverter | LED Indication |
| c) Batt Low | LED Indication & Alarm |
| d) Fault | LED Indication & Alarm |
| e) Overload | LED Indication & Alarm |
| OPTIONAL (Features) | |
| Communication | RS232/SNMP |
| Bypass | Static Switch |
➤ CComputer and Data Centers.
➤ Process Control in industries like CNC,Lazar cutting M/c
➤ Broadcasting / SAT systems
➤ Internet Service Provider
➤ Safety System in Power Plants
➤ Medical Imaging Equipments, like MRI, CT scan, lazar etc
➤ BElevator backup and rescue operations
➤ Banks and ATM centers
➤ Applications requiring Constant frequency and constant voltage
➤ Advanced Technology: DSP based control for power and monitoring
➤ IGBT (insulated gate bipolar transistor) inverter technology
➤ PWM Pure sine wave output,
➤ True on-line dual conversion design for UPS
➤ Wide Input Range, Robust Design for Harsh Environment
➤ With Isolation Transformer at Output
➤ Engineered Design, Easy for Maintenance and Minimize MTTR Compact size
➤ CNC Fabricated sheet enclosure for better aesthetics and consistency
➤ Three phase separate control, realizes the control of instantaneous overloading balance, so as to reach 100% unbalanced load in three phase UPS.
➤ Intelligent communication optional SNMP and dry contact.
➤ Static Bypass switch available on demand.
➤ Perfect protection, output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, all displayed on LCD display with alarm function.
➤ Excellent load feature, It is completely capable to load from 0-100%
➤ Specifications can be customized to suit specific requirements.
➤ Designed and manufactured in India.
| PARAMETER | TECHNICAL SPECIFICATION |
|---|---|
| Model | ERD - FTX |
| Rating | 15KVA to 250KVA |
| AC INPUT | 415V+15%-15%, Three Phase Input |
| Frequency | 50Hz ± 6% |
| DC VOLTAGE: | 240/360 VDC |
| Charger Type | CVCC (Constant Current Constant Voltage type) |
| INVERTER: | |
| Technology | DSP Based, IGBT Switching |
| Output Voltage | 400V AC Three Phase |
| Voltage Regulation | ±1% |
| Frequency | 50Hz ± 0.1Hz |
| Waveform | PWM Sine Wave |
| Harmonic Distortion | Less Than 3% on Linear Load |
| Inverter Efficiency | Upto 93% |
| Power Factor | 0.8 |
| Overload | 110 % for 5 min, 150% for 30 sec |
| Crest Factor | 3:1 |
| Phase Displacement | 120° ± 1° |
| Audible Noise | Less than 50 dB at 1 Meter |
| DISPLAY | |
| Digital LCD Display for | R,Y,B Output Voltages, Output currents & Frequency, DC Voltage, Battery and Load Percentage and All Faults |
| GENERAL | |
| Operating temperature | 0°C to 40°C |
| Humidity | Max 95%, Non-condensing |
| Dimensions (L x W x H) | 900 x 450 x 950mm (15 KVA to 30 kVA) |
| PROTECTIONS | Output Overload & Short circuit, Output Under & Over voltage, DC Under & Over voltage, Mains Under & Over voltage, Mains Single Phasing |
| INDICATIONS & ALARMS | |
| a) Mains on | LED Indication |
| b) Inverter | LED Indication |
| c) Batt Low | LED Indication & Alarm |
| d) Fault | LED Indication & Alarm |
| e) Overload | LED Indication & Alarm |
| OPTIONAL (Features) | |
| Communication | RS232/SNMP |
| Bypass | Static Switch |

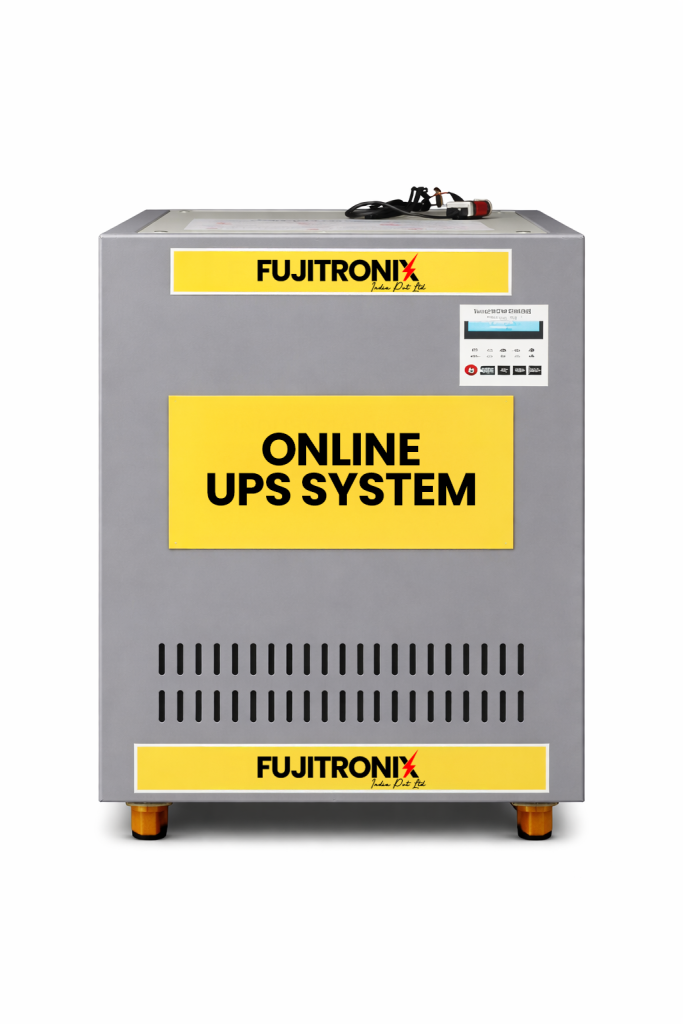

An Online UPS is a type of UPS that provides continuous power protection by always supplying power from its inverter, regardless of the input power quality. Unlike other UPS types, it offers seamless power transfer and isolation from power fluctuations and surges.
Online UPS systems offer several benefits, including zero transfer time during power interruptions, protection against voltage sags, surges, and harmonic distortion, and the ability to provide high-quality power to sensitive equipment. They are ideal for critical applications where uninterrupted power is essential.
While Online UPS systems are highly reliable, they may be slightly less energy-efficient than some other UPS types due to the constant operation of their inverter. However, modern Online UPS models often incorporate energy-saving features to optimize efficiency.
Online UPS systems generally require regular maintenance, including battery replacement, cleaning, and routine system checks. The frequency of maintenance depends on the specific UPS model and usage conditions. It's crucial to follow the manufacturer's recommendations.
Online UPS systems are available in various sizes and capacities to accommodate different load requirements. While they are well-suited for critical applications and can handle substantial loads, the choice of UPS capacity should align with the specific power needs of your equipment.
